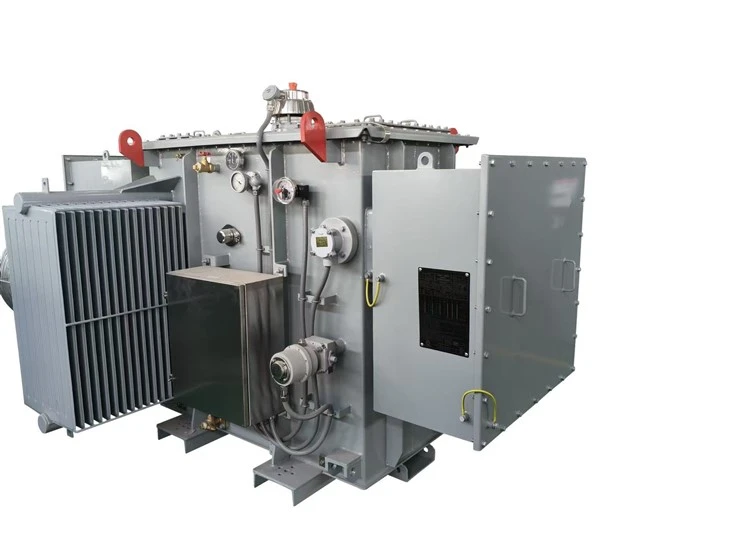

2000/2300kVA Hluav Taws Xob Substation Transformer-13.8/0.48 kV|USA 2025

01 General

1.1 Project Description

2000/2300 kVA substation transformer tau xa mus rau Asmeskas xyoo 2025. Lub zog ntsuas ntawm lub transformer yog 2000/2300 kVA nrog KNAN / KNAF txias. Thawj qhov hluav taws xob yog 13.8 kV nrog ± 2 * 2.5% tapping ntau yam (NLTC), qhov nruab nrab voltage yog 0.48GrdY / 0.277 kV, lawv tsim ib pawg vector ntawm Dyn1.

Qhia peb 2000/2300 kVA substation transformer - lub zog hluav taws xob daws teeb meem tsim los rau kev thov hauv Kev Tswj Hluav Taws Xob (APC), High Airflow Facilities (HAF), High-Load Substations (HLSB), thiab Wagon Loading Systems. Qhov no siab -kev ua tau zoo transformer nta 5A nruab nrab grounding resistor rau txhim khu kev tiv thaiv txhaum, ib tug precision 5: 5 piv tam sim no transformer rau kev soj ntsuam kom raug, thiab ib tug C10 luv- qhov ntsuas hluav taws xob tiv thaiv hluav taws xob hnyav.

Tsim los rau kev ntseeg siab hauv cov txheej txheem tseem ceeb, nws muab cov khoom siv hluav taws xob ruaj khov rau kev tswj hwm lub tshuab hluav taws xob, siab - muaj peev xwm txias ib puag ncig, hnyav -load substations, thiab rail logistics ua haujlwm. Nrog nws cov rugged kev tsim kho thiab cov yam ntxwv muaj kev nyab xeeb siab tshaj, suav nrog kev ua kom zoo tam sim no txwv tsis pub thiab luv luv -circuit tiv taus lub peev xwm, qhov hloov pauv no ua kom tsis muaj kev cuam tshuam kev lag luam uas lub zog zoo thiab kev tiv thaiv kab ke yog qhov tseem ceeb. Cov txheej txheem xaiv tau suav nrog kev saib xyuas tej thaj chaw deb thiab cov kev daws teeb meem txias kom tau raws li cov kev xav tau tshwj xeeb.

1.2 Technical Specification

2000/2300 kVA substation transformer specifications hom thiab cov ntaub ntawv ntawv

1.3 Cov duab kos

2000/2300 kVA substation transformer daim duab kos duab thiab loj.

02 Kev tsim khoom

2.1 Core

Cov tub ntxhais laminated yog ib qho tseem ceeb ntawm peb -theem, peb -limb substation transformer, muab txoj hauv kev qis qis rau cov hlau nplaum sib nqus thaum txo qis tam sim no poob. Tsim los ntawm stacked silicon steel laminations, cov tub ntxhais nta ib tug peb -kem tsim uas optimizes sib nqus flux faib rau sib npaug peb- theem ua hauj lwm. Nws cov qauv ruaj khov ua kom muaj kev ua haujlwm siab, txo qis tsis muaj -load poob, thiab txhim khu kev qha ua haujlwm raws li qhov sib txawv ntawm cov khoom thauj. Lub laminated tsim kuj txhim kho thermal stability thiab mechanical zog, ua rau nws zoo tagnrho rau siab - fais fab substation daim ntaub ntawv.

2.2 Cua txias

LV Winding:Ua los ntawm cov ntawv ci tooj liab, muab cov khaubncaws sab nraud povtseg, sib xyaw ua kom txias txias, thiab siab luv - lub zog hluav taws xob.

HV Winding:Multi- txheej helical winding nrog cov rwb thaiv tsev muaj zog, optimized inter-tig capacitance rau siab -voltage stability.

2.3 Tank

Lub tank transformer ua hauj lwm raws li qhov kev tiv thaiv enclosure rau lub ntsiab transformer, tsim nrog siab - zoo welded steel daim hlau nyob rau hauv ib tug tag nrho kaw tsim. Lub tank tau dhau qhov kev sim siab nruj kom ntseeg tau tias kev ua haujlwm tau zoo nyob rau hauv kev ua haujlwm roj siab hloov pauv thiab kev ua txhaum sab hauv. Ntau qhov flanged qhib tau muab rau cov bushings, ntsuas roj qib, thiab cov cuab yeej saib xyuas. Cov chaw sab hauv tau txais kev tiv thaiv- kev kho corrosion thiab suav nrog kev tiv thaiv hlau nplaum kom txo qis kev poob. Cov kev xaiv kev cai muaj xws li tiv thaiv- cov coatings corrosion lossis stainless hlau tsim rau qhov xav tau ib puag ncig.

2.4 Kev sib dhos zaum kawg

Lub substation transformer los ua ke muaj cov tub ntxhais stacking, winding installation (foil LV + hlau HV), active ib feem kho, davhlau ya nyob twg kev twb kev txuas, tank sealing, thiab accessory mounting, nrog lub tshuab nqus tsev transformer roj filling thiab Hoobkas kev ntsuam xyuas (piv, impedance, kub nce, thiab lwm yam) kom ua raws li. Modular tsim ua kom yooj yim thauj thiab txij nkawm.

03 Kev Xeem

04 Packing thiab Shipping

4.1 Ntim

Lub substation transformer txais tag nrho cov hlau nyob hauv- ntim khoom ntim. Lub ntsiab ncej yog tsim los nrog siab -lub zog welded channel steel, nruab nrog sab hauv los tiv thaiv- kev co txhawb nqa. Lub crate nta lifting lugs rau kev ruaj ntseg tuav nrog cranes los yog forklifts thiab yog kom meej meej sau nrog cov lus ceeb toom (xws li, "Fragile," "Keep Dry"). Cov ntaub ntawv tseem ceeb (cov ntawv ntim khoom, cov ntawv qhia txog kev hloov pauv) tau muab khaws cia rau hauv lub hnab ntim dej tsis zoo hauv lub ntim.

4.2 Shipping

Lub tshuab hloov pauv tau thauj mus rau qhov chaw nres nkoj ntawm qhov hnyav - lub luag haujlwm trailer, ruaj khov kom tiv thaiv kev hloov pauv. Ntawm qhov chaw nres nkoj, nws tau thauj mus rau hauv lub thawv, nrog kev sib khi kom zoo thiab kev tiv thaiv ya raws. Lub thawv ntim tau raug xa los ntawm lub nkoj dej hiav txwv nrog - sijhawm taug qab. Cov ntaub ntawv kev lis kev cai tau npaj ua ntej rau kev tshem tawm du.

05 Site thiab Summary

Raws li cov khoom tseem ceeb hauv kev tsim hluav taws xob, peb cov chaw hloov hluav taws xob substation xa cov kev ua tau zoo, kev tsim kho, thiab lub zog- ua haujlwm tau zoo. Engineered kom ua tau raws li cov qauv thoob ntiaj teb, lawv ua kom muaj hluav taws xob ruaj khov rau kev lag luam, kev lag luam, thiab kev siv hluav taws xob. Nrog cov kev xaiv customizable thiab nruj zoo tswj, peb muab cov kev daws teeb meem raws li koj daim phiaj xav tau. Tiv tauj peb kom muaj zog koj cov haujlwm nrog kev ntseeg siab.
